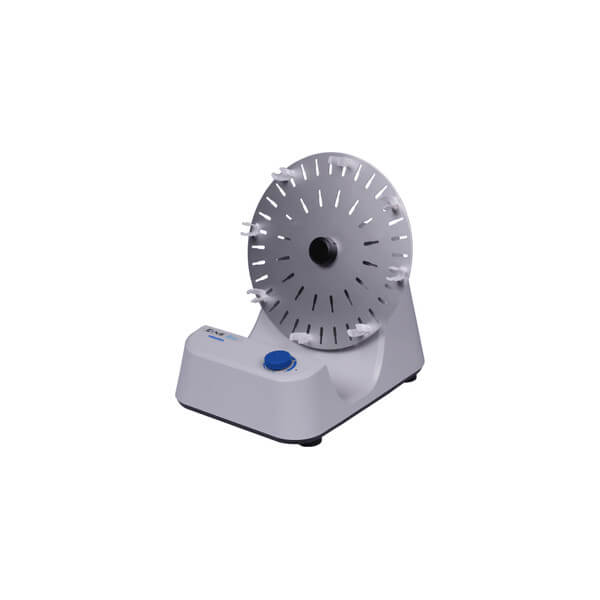

Analogue Disk Rotator

Analogue Disk Rotator has a cost effective and ergonomic design that is perfect for all laboratory applications that require gentle tube mixing. The Analogue Disk Rotator can mix a variety of tubes including 48 x 1.5ml Eppendorf tubes, 16 x 15 ml or 8 x 50 ml centrifuge tubes. The analogue disk tube rotator is ideal for mixing blood samples to avoid coagulation, keeping biological samples in suspension and aerating cultures. Variable speed means that the aggressiveness of the mixing can be adjusted for a specific application.

• Type of Movement: Rotating
• Permissible Shaking Weight [kg]: 2
• Power [W]: 20
• Motor Type: Brushless DC
• Speed Range [rpm]: 0 – 80
• Speed Display: –
• Turntable Tilt Angle [°]: 20
• Turntable Stackable: No
• Timer: No
• Timer Display: –
• Timer Setting Range [min]: –
• Operation Type: Continuous
• Protection Class Acc. to DIN EN 60529: IP 21
• RS232 Computer Interface: No
• Dimensions (W x H x D) [mm]: 220 x 310 x 300
• Weight [kg]: 2
• Housing Material: ABS
• Rotor Material: Aluminium
• Clips Material: ABS
• Permissible Ambient Temperature [°C]: 5 – 40
• Permissible Relative Humidity [%]: 80
• Voltage [V AC]: 100 – 240
• Frequency [Hz]: 50/60

• Comes with 12 of each size 1.5/15/50 ml centrifuge tube clamps
• Analogue speed control
• Speed range adjustable between 0 and 80 rpm
• Suitable for continuous operation
• Economic compact space saving design
• Gentle circular rotating movement provides efficient mixing capabilities
• Suitable for cold rooms and incubators between 5 and 40 °C
• CE Certified
• 2 Year Warranty
